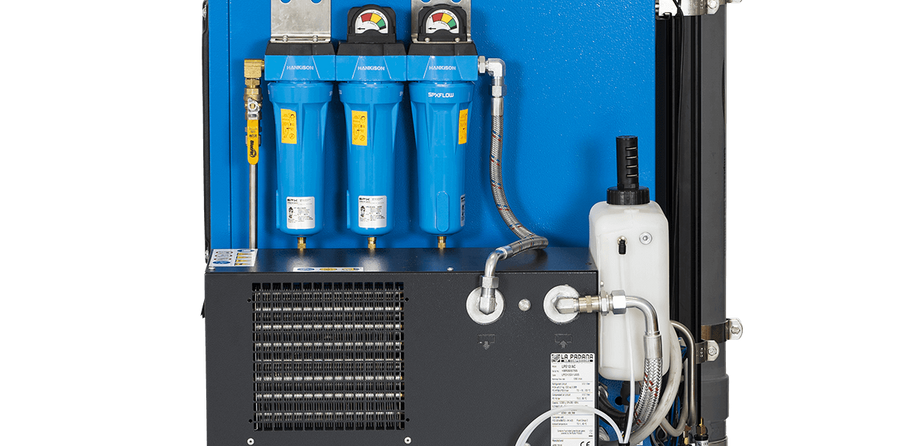

It consists of an industrial screw compressor that delivers air at a pressure of 8 bar towards a membrane that separates nitrogen and oxygen up to a maximum percentage of 40% of oxygen. The enriched air can be compressed to 232 bar in combination with a high pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted from 32% to 40% thanks to a valve accessible directly on the top of the compressor. The oxygen analyzer allows you to check the correct percentage, adjusting it through the appropriate valve.

​

Standard equipment

​

• Electrical cabinet

• Automatic condensate drain

• 2 analyzers

• Thermostat

• 1 Permea 230 membrane

​

Flowrate

EAN 32 - 600 l/min

EAN 36 - 400 l/min

EAN 40 - 300l/min

​

Engine: Electric three-phase 400 V - 50 Hz

Engine power: 7.5 kW - 10 Hp

Charging rate: 1.070 l / min - 64.2 m3 / h - 37.7 CFM

Working pressure: 8 bar - 116 PSI

Net weight (approx.): 256 kg - 564 lb

Dimensions (W x D x H): 124 x 85 x 123 cm - 48.8 x 33.5 x 48.4 in.
